Standard Configuration(Customzibale)
Capacity: 5L-3000L(Loading Factor: 0.3-0.85)
Discharge Way: Press Machine Or Natural Outflow By Lifting Tank
Blade Shape: Slow Blade-Sigma Shape Or Paddle Shape;High Speed Discs- Cowles Disperser
Scraper: PTFE Clean Material Stick On Tank’s Wall
Material: SUS304,SUS316L
Motor: Explosion Proof Or Normally
Heating: Jacket Cycle Oil Heating,Jacket Cycle Water Heating,Jacket Cycle Steam Heating
Cooling: Jacket Cycle Cold Water,Jacket Cycle Cold Oil,Jacket Cycle Cold Glycol
Vacuum: Vacuum Degree -0.096Mpa;Explosion Proof Can Be Choosen
PLC System: Can Be Choosen
Control Cabinet: Explosion Proof Or Normally

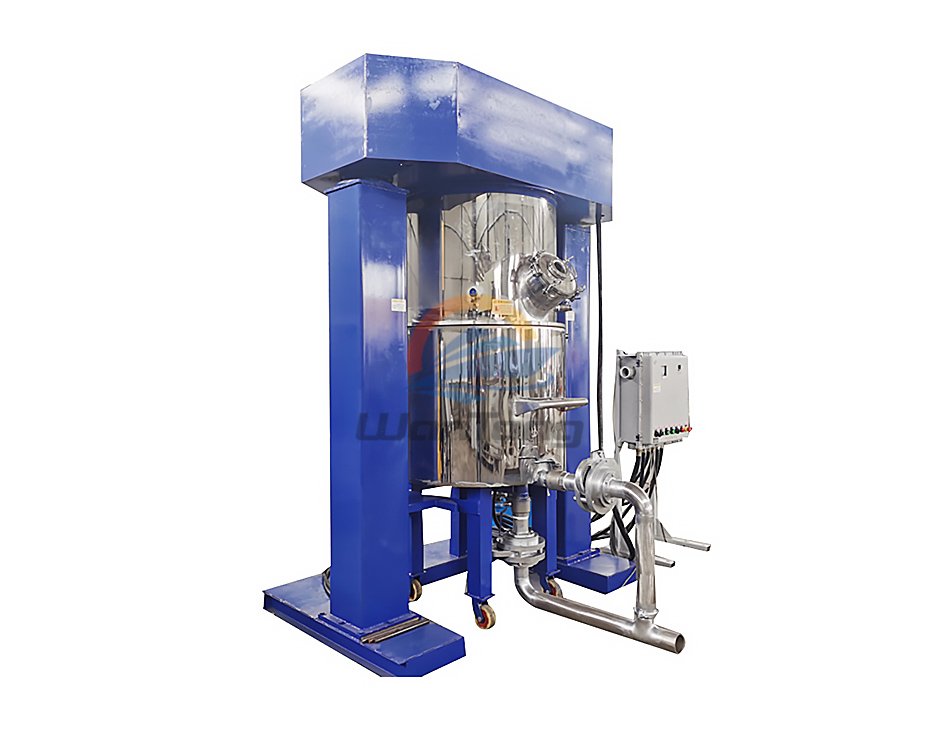

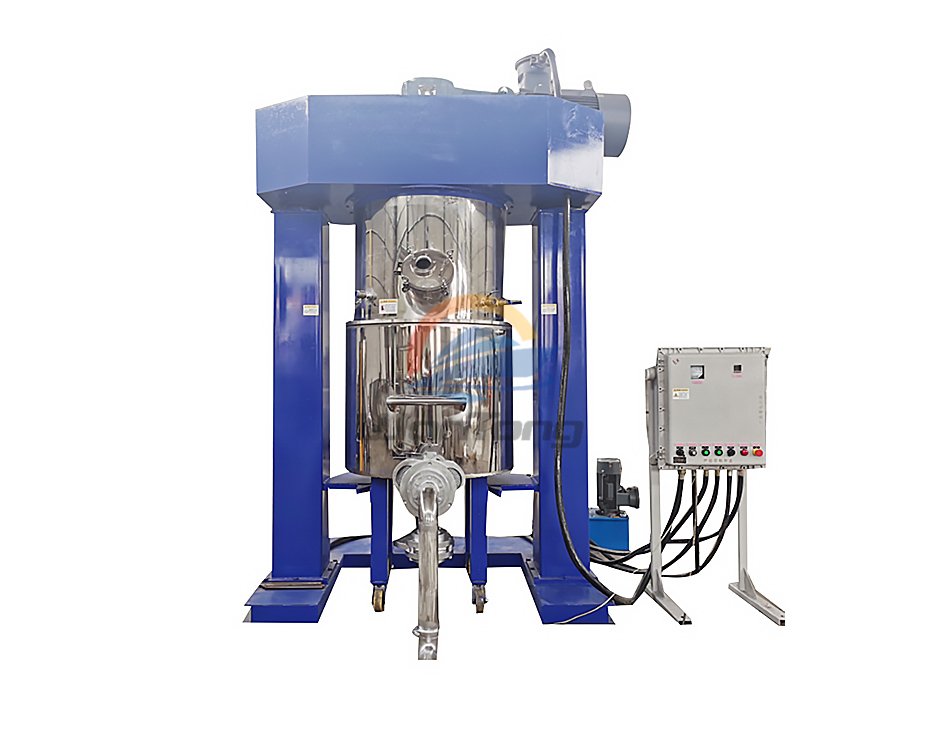

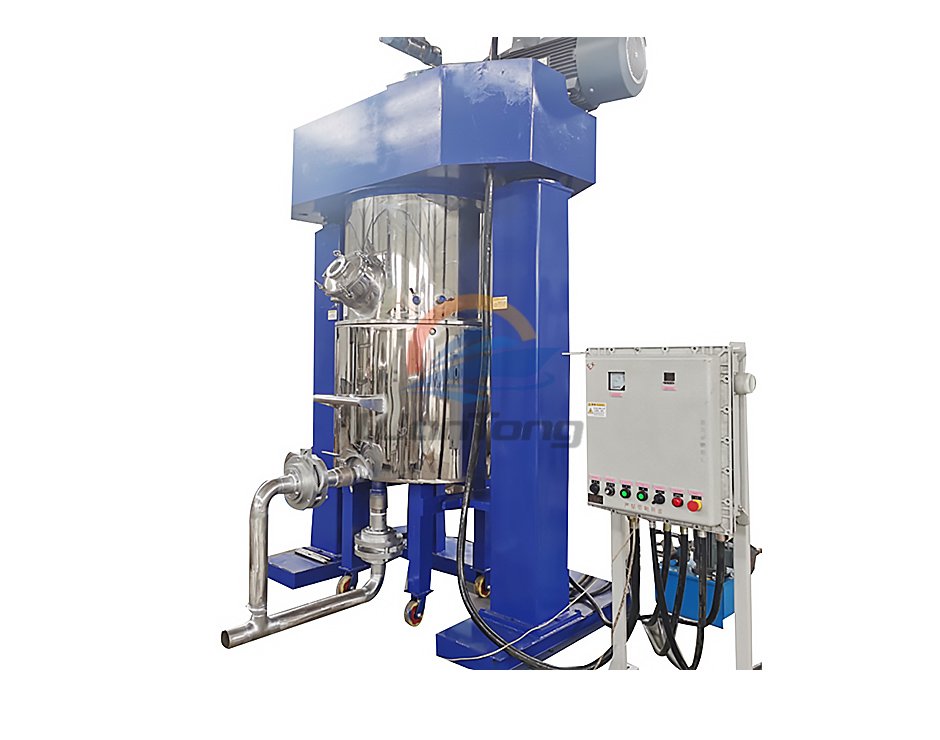

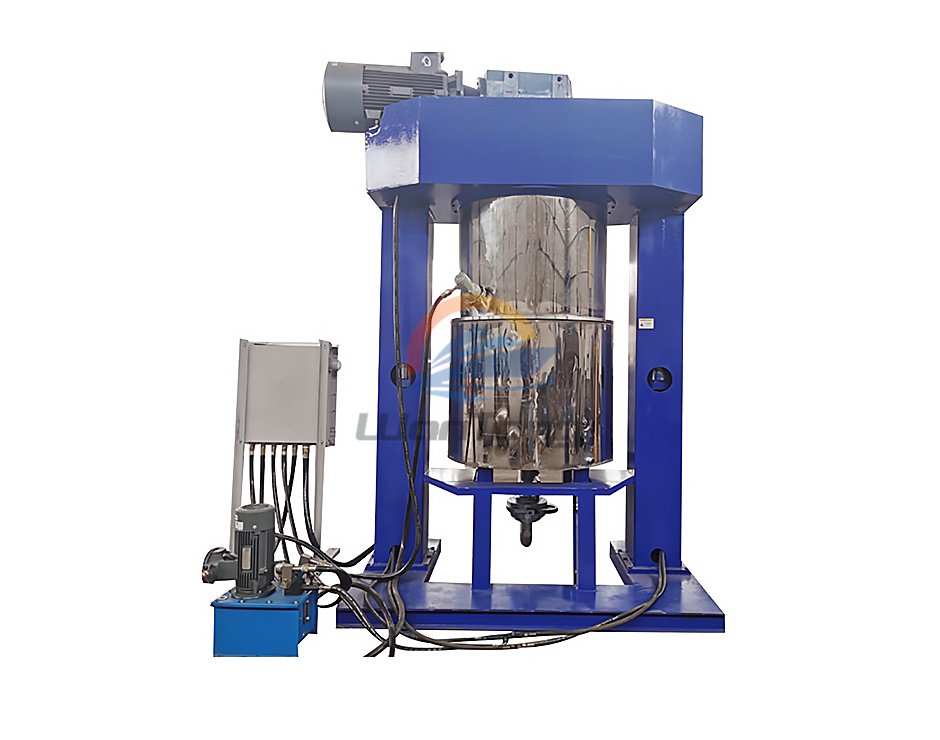

What Is Planetary Mixer?
The planetary mixer is a specialized industrial mixing equipment for high-viscosity paste-like
materials.Its core feature is: the mixing paddle rotates both independently (around its own axis)
and simultaneously revolves around the center of the material barrel, similar to the motion of a planet.
Hence, it is called a planetary mixer.
How A Planetary Mixer Work?
The planetary gear drives the mixing components to revolve around the center of the barrel;
at the same time,the blades rotate independently.
The combined motion constantly folds, squeezes, kneads and shears the materials on the barrel
wall and bottom, with basically no mixing dead zones; many models are equipped with scraping blades
for the barrel and bottom, continuously scraping off the materials adhering to the barrel wall to prevent
sticking and caking.
Planetary Mixer Main Advantage:
1. High torque,suitable for high viscosity, high solid content, paste-like substances (ranging from tens of
thousands to millions of cps)
2. No mixing dead zones,high mixing uniformity
3. One machine can achieve mixing,kneading,dispersion,defoaming,reaction
4. Can be vacuumed to reduce bubbles and prevent material oxidation

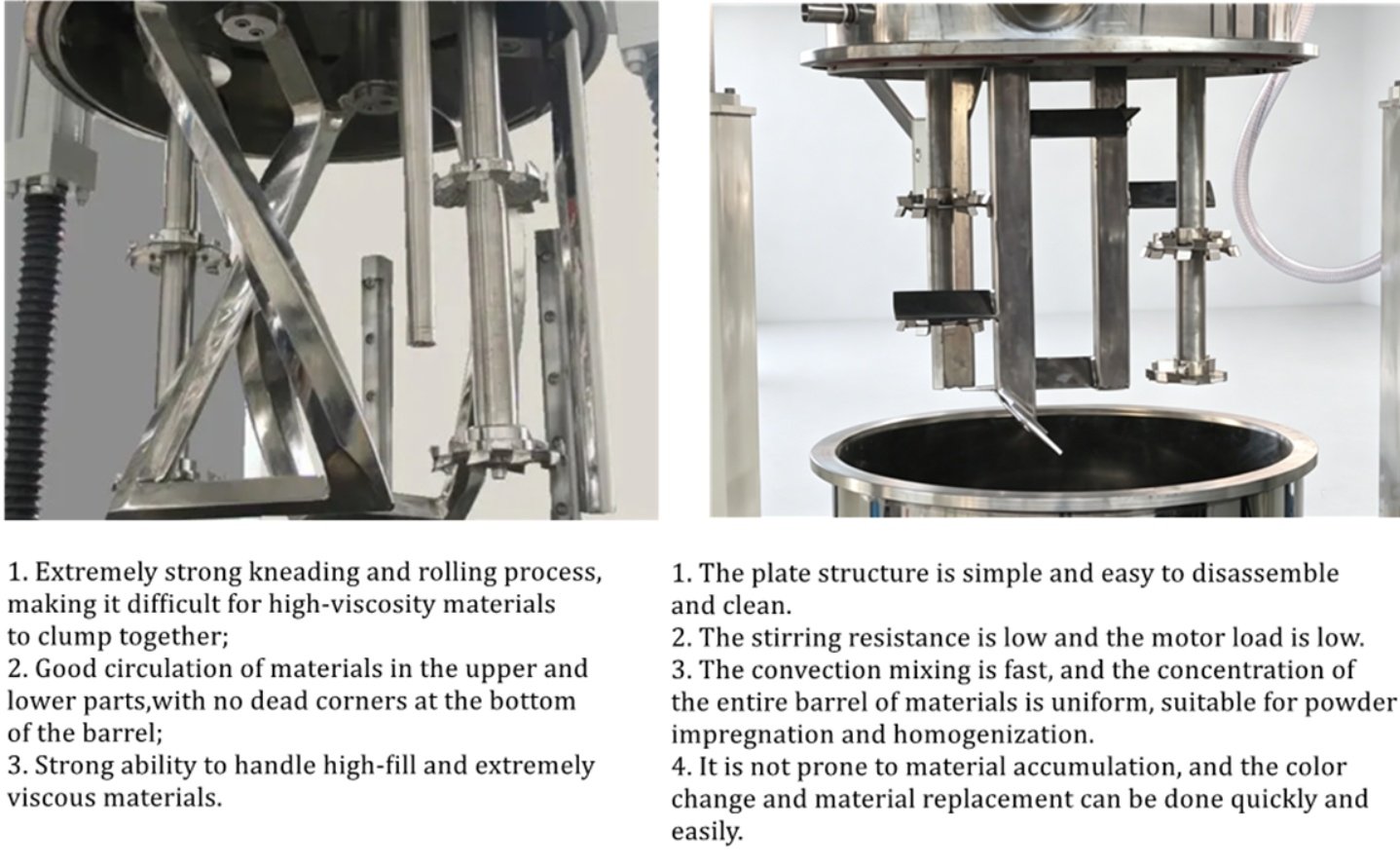

Planetary Mixer Sigma Shape Blade VS Paddle Blade?
