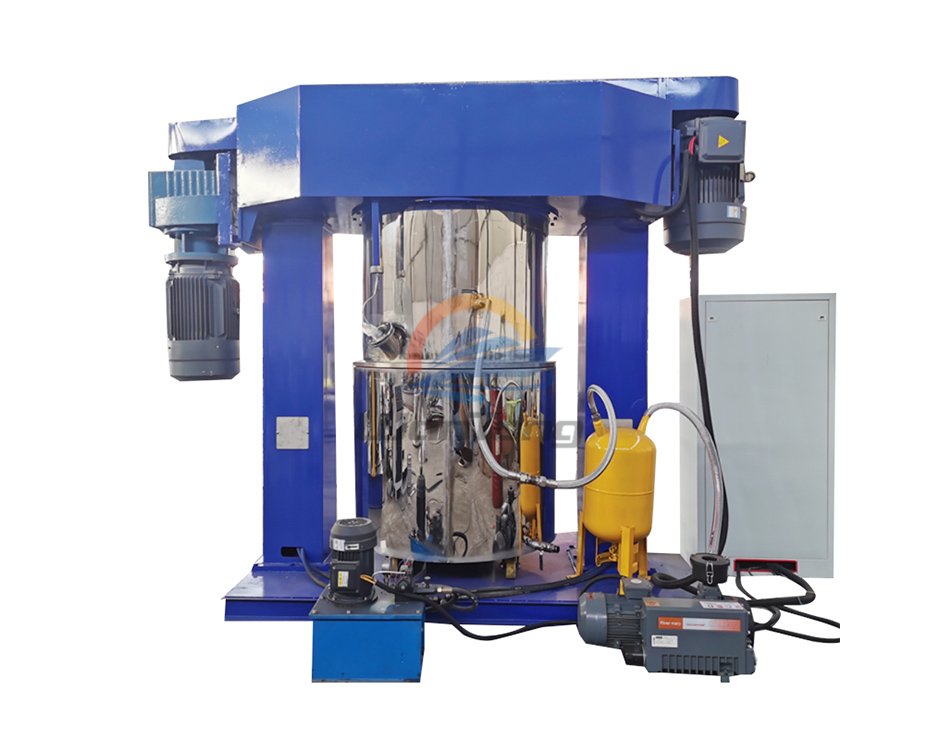

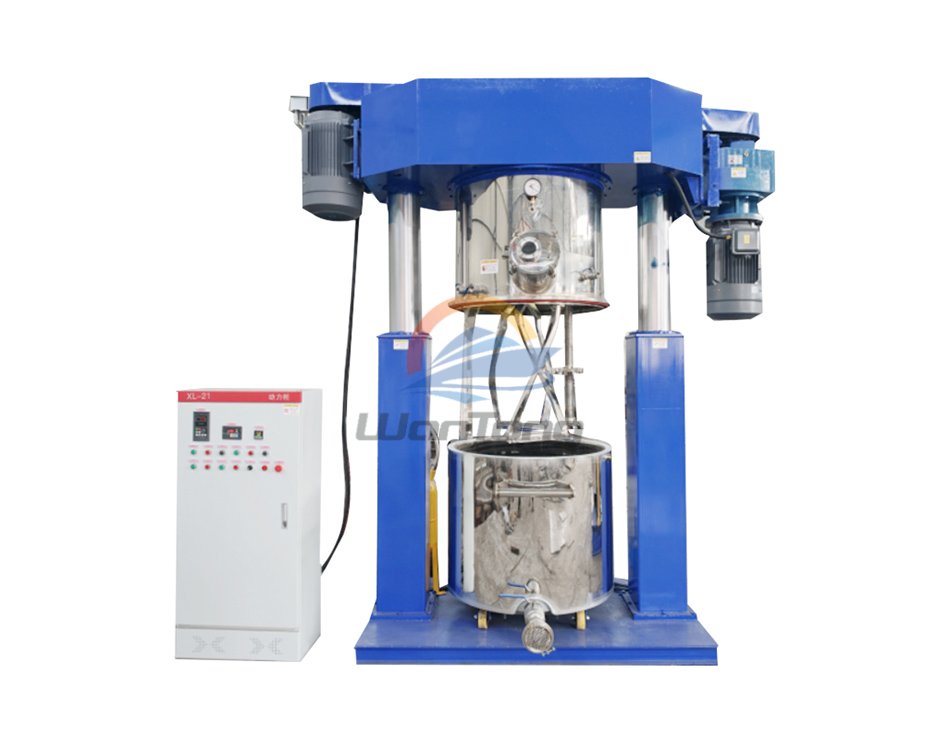

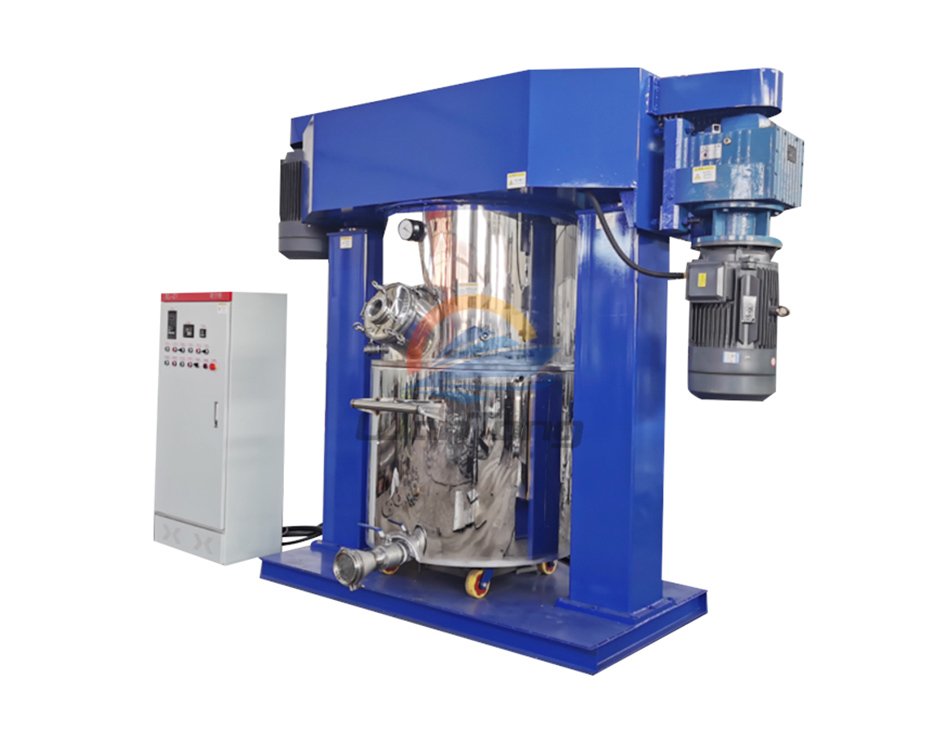

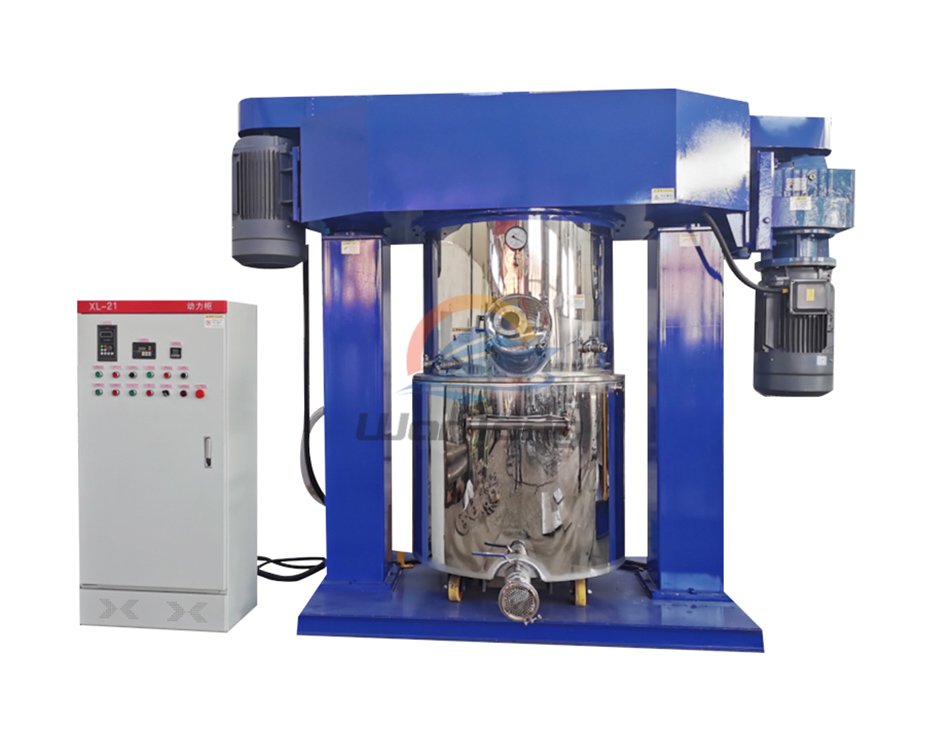

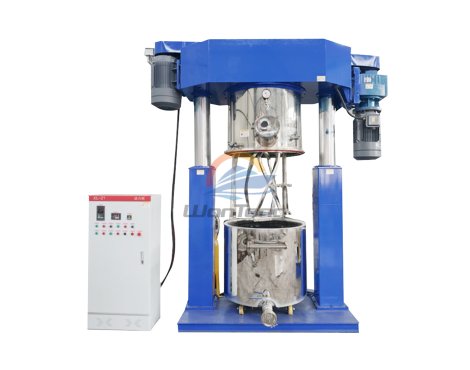

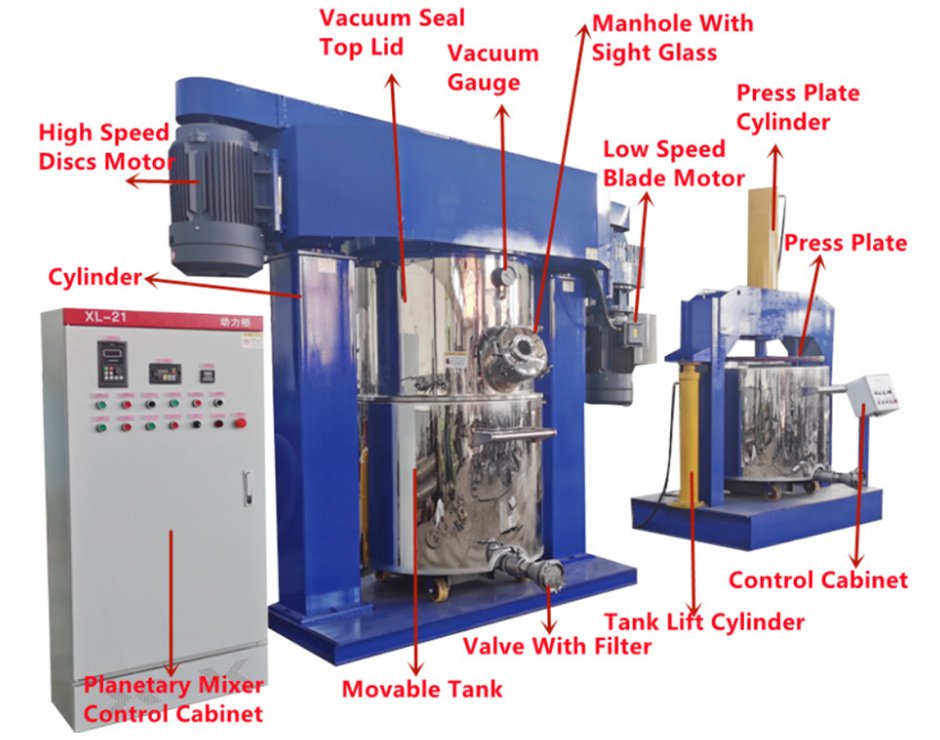

500L Silicone Sealant Double Planetary Mixer With Press Machine

500L Silicone Sealant Double Planetary Mixer With Press Machine

Main Features :

1. Capacity: Full Capacity 600L,Working Capacity 180L-500L

2. Certification: CE,ISO9001

3. Slow Blade: SUS304 Double Sigma Shape Driven By A 22KW Motor With Gear Box

Speed: 0-60RPM Controlled By Frequency Inverter

4. High Speed Disc: SUS304 Cowles Disperser Driven By A 30KW Motor

Speed: 0-1450RPM Controlled By Frequency Inverter

5. Scraper: PTFE Clean The Raw Material On Tank’s Wall; Speed 0-60RPM

6. Movable Tank: Material Contact Parts,Jacket All Made By SUS304 With Mirror Polish

7. Vacuum System: Vacuum Pump,Buffer Tank,Valve,Pipes,Vacuum Gauge

Vacuum Degree: -0.096Mpa

8. Cooling System: Cycle Cold Water In Movable Tank’s Jacket

9. DN100*2 Sight Glass With One Lamp

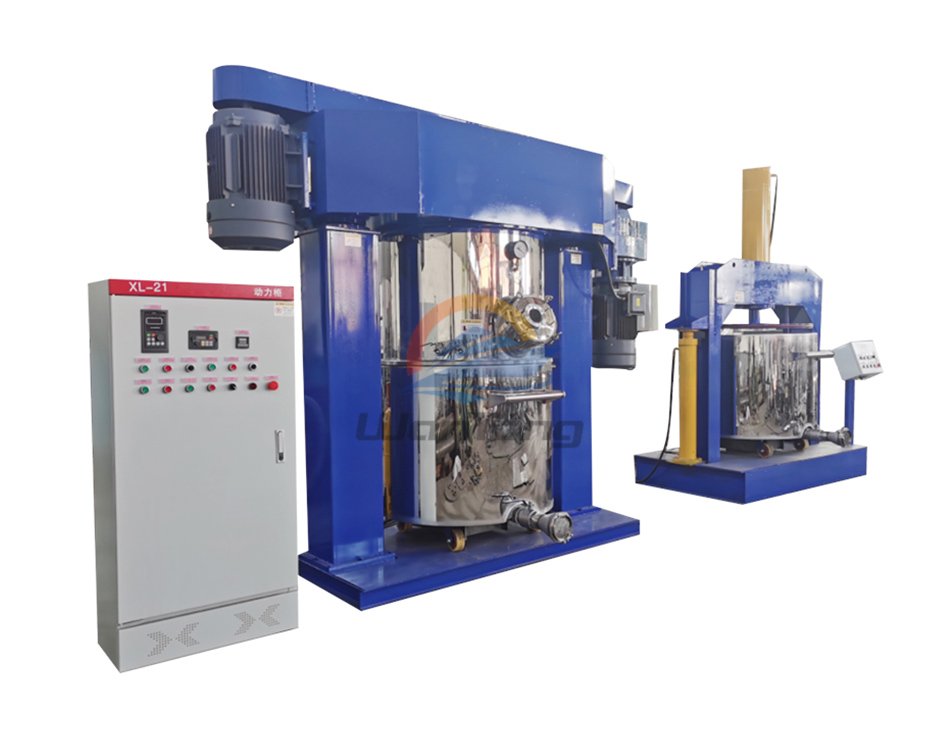

10. Press Machine Can Lift The Movable Tank And Discharge Material By Press Plate

PRODUCT DETAILS

Standard Configuration(Customzibale)

Capacity: 5L-3000L(Loading Factor: 0.3-0.85)

Discharge Way: Press Machine Or Natural Outflow By Lifting Tank

Blade Shape: Slow Blade-Sigma Shape Or Paddle Shape;High

Speed Discs- Cowles Disperser

Scraper: PTFE Clean Material Stick On Tank’s Wall

Material: SUS304,SUS316L

Motor: Explosion Proof Or Normally

Heating: Jacket Cycle Oil Heating,Jacket Cycle Water Heating,Jacket Cycle Steam Heating

Cooling: Jacket Cycle Cold Water,Jacket Cycle Cold Oil,Jacket Cycle Cold Glycol

Vacuum: Vacuum Pump,Buffer Tank,Pipes,Valve, Vacuum Gauge;Vacuum Degree -0.096Mpa

PLC: Can Be Choosen

Control Cabinet: Explosion Proof Or Normally

What Is Planetary Mixer?

The planetary mixer is a specialized industrial mixing equipment for high-viscosity paste-like

materials.Its core feature is: the mixing paddle rotates both independently (around its own axis)

and simultaneously revolves around the center of the material barrel, similar to the motion of a planet.

Hence, it is called a planetary mixer.

How A Double Planetary Mixer Work?

The planetary gear drives the mixing components to revolve around the center of the barrel;

at the same time,the blades rotate independently.

The combined motion constantly folds, squeezes, kneads and shears the materials on the barrel

wall and bottom, with basically no mixing dead zones; many models are equipped with scraping blades

for the barrel and bottom, continuously scraping off the materials adhering to the barrel wall to prevent

sticking and caking.

Double Planetary Mixer Main Advantage:

1. High torque, suitable for high viscosity, high solid content, paste-like substances (ranging from tens of

thousands to millions of cps)

2. No mixing dead zones,high mixing uniformity

3. One machine can achieve mixing, kneading, dispersion, defoaming,and reaction

4. Can be vacuumed to reduce bubbles and prevent material oxidation

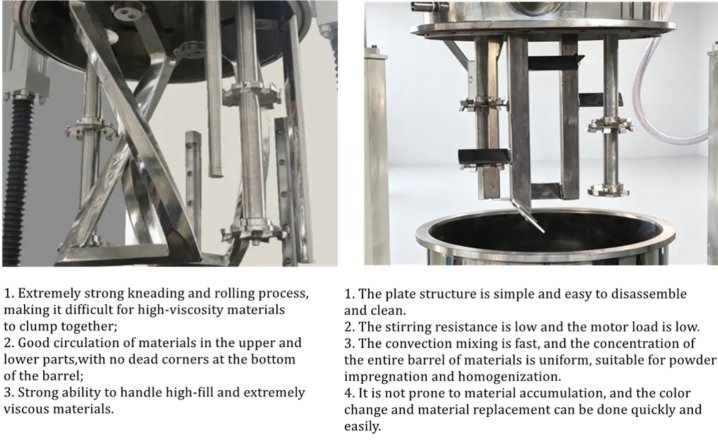

Planetary Mixer Sigma Shape Blade VS Paddle Blade?
