What Is Planetary Mixer?
The planetary mixer is a specialized industrial mixing equipment for high-viscosity paste-like
materials.Its core feature is: the mixing paddle rotates both independently (around its own axis)
and simultaneously revolves around the center of the material barrel, similar to the motion of a planet.
Hence, it is called a planetary mixer.

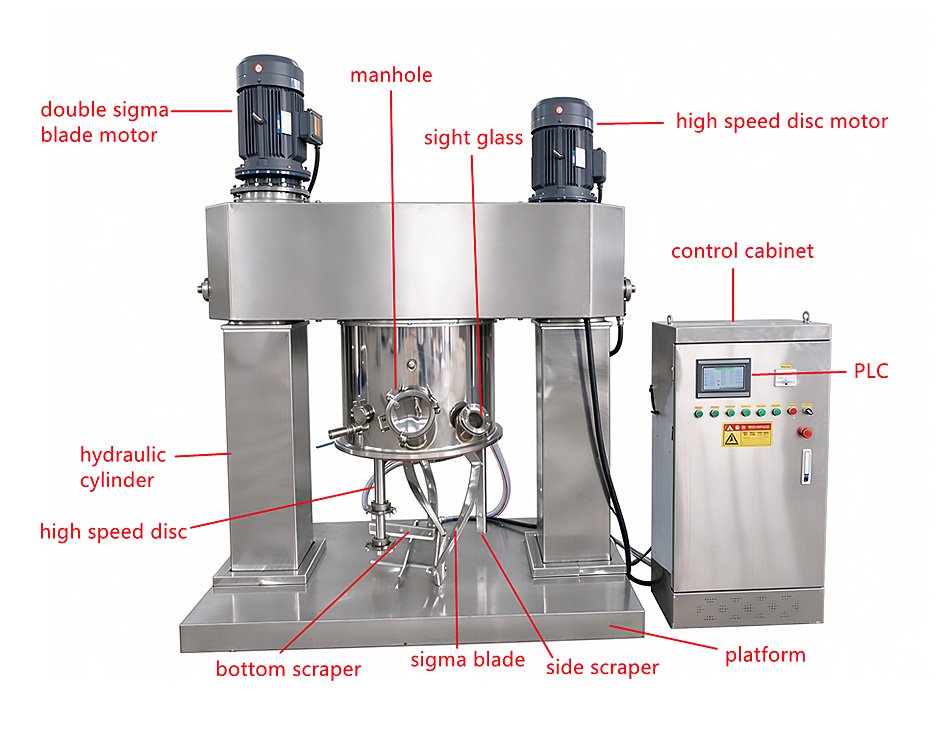

How A Double Planetary Mixer Work?
The planetary gear drives the mixing components to revolve around the center of the barrel;
at the same time,the blades rotate independently.
The combined motion constantly folds, squeezes, kneads and shears the materials on the barrel
wall and bottom, with basically no mixing dead zones; many models are equipped with scraping blades
for the barrel and bottom, continuously scraping off the materials adhering to the barrel wall to prevent
sticking and caking.
Double Planetary Mixer Main Advantage:
1. High torque, suitable for high viscosity, high solid content, paste-like substances (ranging from tens of
thousands to millions of cps)
2. No mixing dead zones,high mixing uniformity
3. One machine can achieve mixing, kneading, dispersion, defoaming,and reaction
4. Can be vacuumed to reduce bubbles and prevent material oxidation

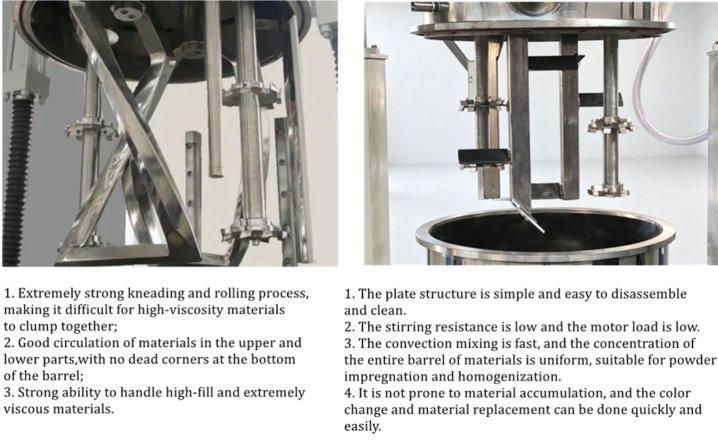

Planetary Mixer Sigma Shape Blade VS Paddle Blade?
▪ The planetary mixer is used for dissolving,dispersing,mixing,milling,and reacting materials from powders to high viscosity and density materials.At the same time, heating,cooling,vacuum and other functions can be added according to process requirements.
▪ The planetary mixer used for viscous material：
1. Energy: battery paste,battery slurry etc
2. Electronics:solder paste,ceramic slurry,magnetic materials,silicone glue ink,electronic adhesive,PVC plastic,potting adhesive for electronic and electrical parts,hot melt,noble metal slurry etc
3. Chemicals:sealant glue,adhesive,resin rubber,ink,wall putty,abrasive paste,waxwork,synthetic rubber,synthetic resin,various powder materials and slurries etc
4. Pharmaceuticals: plaster,polymer gel,dental products etc
5. Cosmetics: moisturizer,lipstick, lotion, gel, mask, mascara, nail polish, toothpaste, soap etc
6.Food: pasty food,seasoning, jam, chocolate sauce etc
Model | Motor Power (KW) | Heating Way | Cooling Way | Vacuum Degree (MPA) | Pressure (MPA) | Shape Size (M) | Weight (KG) |
2L | 0.75-1.1 | Electrical,Cycle Steam/ Hot Oil/Hot Water In Jacket | Cycle Cold Water In Jacket | -0.098(Vacuum Type) | 0.45(Pressure Type) | 1.1*0.4*1.7 | 200 |
5L | 1.1-1.5 | 1.1*0.5*1.7 | 300 |
10L | 1.1-2.2 | 1.2*0.5*1.8 | 400 |
50L | 5.5-11 | 1.3*0.7*1.5 | 500 |
100L | 5.5-15 | 1.5*0.8*1.6 | 600 |
200L | 7.5-18.5 | 1.6*1.2*1.6 | 800 |
300L | 7.5-22 | 1.8*1.2*1.7 | 900 |
500L | 11-22 | 2.2*1.2*2.5 | 2000 |
1000L | 15-37 | 2.6*1.3*2.9 | 4000 |
1500L | 18.5-37 | 3.0*1.5*3.0 | 5000 |
2000L | 22-45 | 3.5*2.2*3.2 | 6000 |
3000L | 30-55 | 4.0*2.2*3.5 | 9000 |
