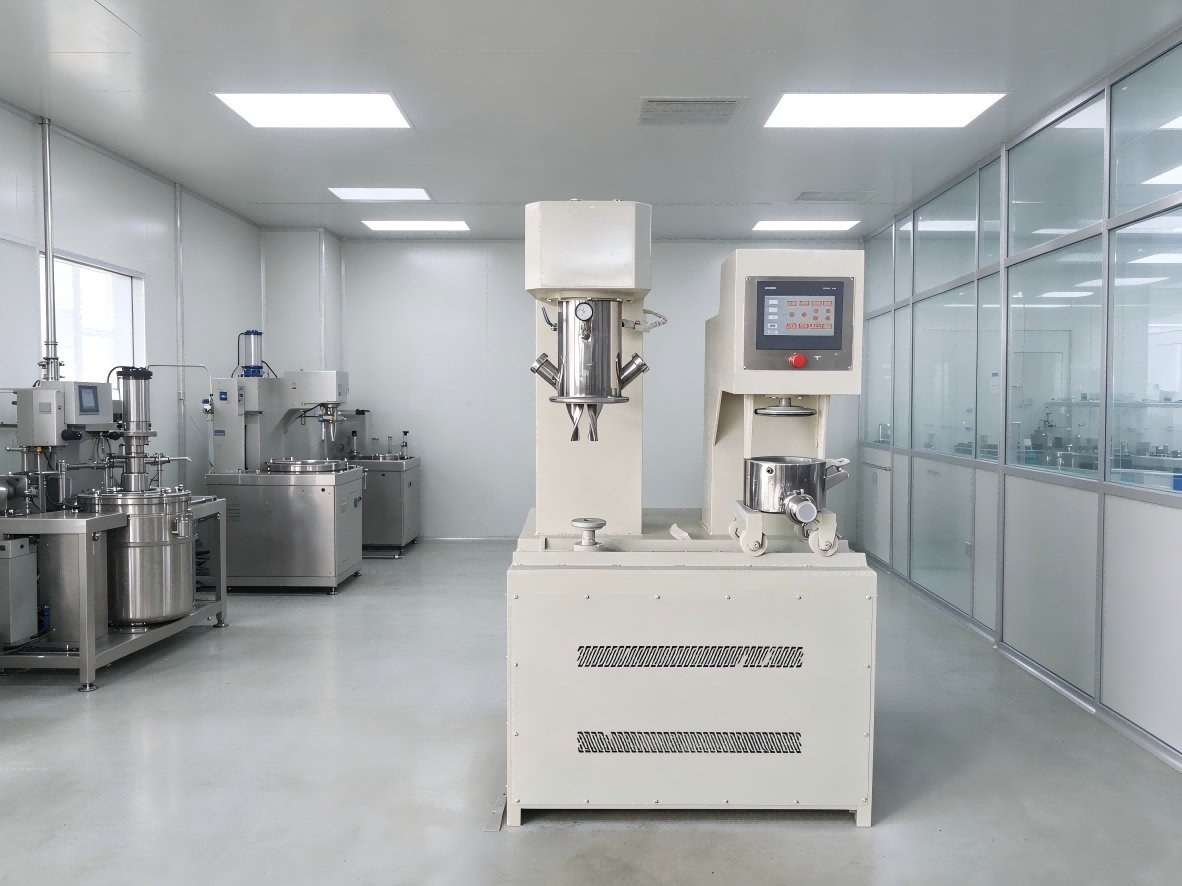

As customer feedback,the 5L laboratory vacuum vertical sigma mixer we sent to Mexico arrived at the customer's factory recently.
This laboratory vertical sigma mixer will be used for the production of dental materials.
This laboratory vacuum vertical sigma mixer configuration below:
1. Total Volume 8L,working capacity 5L.
2. Sigma Blade: Double sigma blade,SUS304 mirror polish.
3. Sigma blade motor 2.2KW-Siemens brand,with inverter-Siemens brand control double sigma blade speed :0-30RPM/0-60RPM(slow/fast)
4. Moveable tank inner and jacket all made by SUS304 mirror polish,jacket cycle cold water to cool,movable tank with SUS304 quick
opening filter.
5. Hydraulic unit control tank lifting.
6. 5T press machine,discharge dental products by pressing.
7. Vacuum system,provide -0.096Mpa vacuum degree,remove the air bubbles in the materials to prevent contact between air and
the product.
8. Temperature display system-Omron brand, make sure that the material temperature does not exceed the limit.
9. PLC system with HMI-Siemens brand, the PLC system can store multiple recipes to achieve automated production and ensure
product quality.
10. Lifting safety limit device.
The double planetary mixer used for mixing high viscosity materials:
1. Energy: battery paste,battery slurry etc
2. Electronics: solder paste,ceramic slurry,magnetic materials,silicone ink,electronic adhesive,PVC plastic cement,potting adhesive for
electronic and electrical parts,noble metal slurry etc
3. Chemicals: liquid silicone rubber,sealant,glue,adhesive,resin rubber,ink,wall putty,abrasive paste,waxwork,synthetic rubber,synthetic
resin etc
4. Pharmaceuticals: plaster,polymer gel,dental products etc
5. Cosmetics: moisturizer,lipstick, lotion, gel, mask, mascara, nail polish, toothpaste, soap etc
6. Food: pasty food,seasoning, jam,chocolate sauce etc
If any requirement for dental mixer or any questions about vertical sigma mixer,please contact us and get professional suggestions
and quotation.
