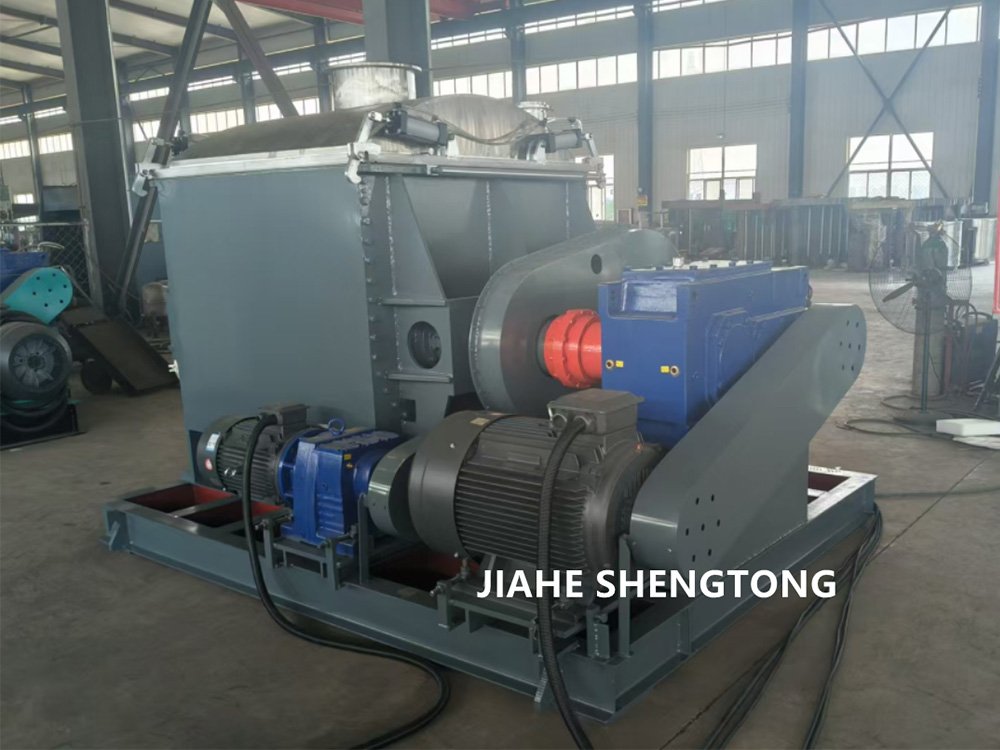

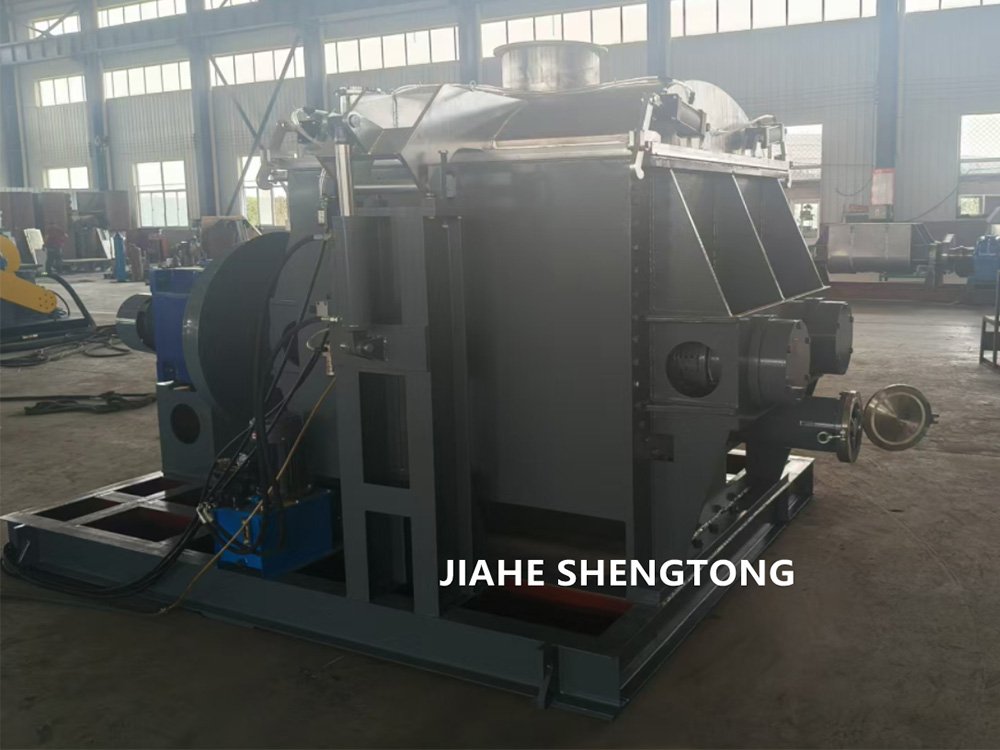

The sigma mixer (also known as the sigma kneader) we produced has been completed perfectly.After passing the quality
inspection,it will be sent to the Buenos Aires Port in Argentina.The customer will use this sigma kneader for the production
of Calcium.
Customer discussed with Jiahe Shengtong Machinery’s engineers about their production process and production details,
our engineers provide professional technical advice.
1. Sigma blades driven by a 55KW motor with Guomao brand gearbox.
2. Sigma blades controlled by a frequency inverter,0-23RPM(slow blade)/038RPM(fast blade).
3. The mixing paddle adopts the sigma type design,which enables more effective kneading. It also helps to squeeze out the
air and moisture inside the materials.
4. Screw extrusion to discharge,screw motor 15kw with R series gearbox,speed 0-65RPM,controlled by frequency inverter.
5. Inner contact parts made by SUS304 with mirror polish,jacket made by carbon steel.
6. The gap between sigma blades with chamber about 3mm,the gap between screw with barrel about 1mm.
7. Jacket cycle hot oil to heat.
8. Vacuum system to remove the bubbles and moisture from the product.As customer have vacuum system in their factory,
so we just leave vacuum hole on top lid and do vacuum seal for top lid.
9. Pneumatic lock device for top lid vacuum seal.
Standard Configuration For A Calcium Stearate Sigma Mixer
1. 2L-7000L capacity can be selected.
2. Tilting discharging or screw extrusion discharging can be selected as requirement
3. Vacuum system: Vacuum pump,buffer tank,valve,pipes,vacuum gauge.
4. Double sigma blades.
5. Jacket cycle hot oil/steam to heat,the blades can cycle hot oil/steam too.
6. PLC system can be added.
7. Explosion-proof system can be selected.
8. Screw outlet can install manual ball valve or pneumatic/electrical control ball valve.
Why Choose Calcium Stearate Sigma Mixer From Jiahe Shengtong Machinery?
1. We are professional manufacturer for rubber sigma mixer(sigma kneader),z blade mixer more than 20years.
2. We have professional technical team of sigma mixer work for customers.
3. We can customized sigma mixer as customer’s detail production process.
4. We offer comprehensive after-sales service. If there is any problem with the sigma mixer,our engineers can provide
on-line services or carry out on-site equipment maintenance.
5. We have a well-established quality inspection system to make sure provide best quality sigma mixer to customers.
