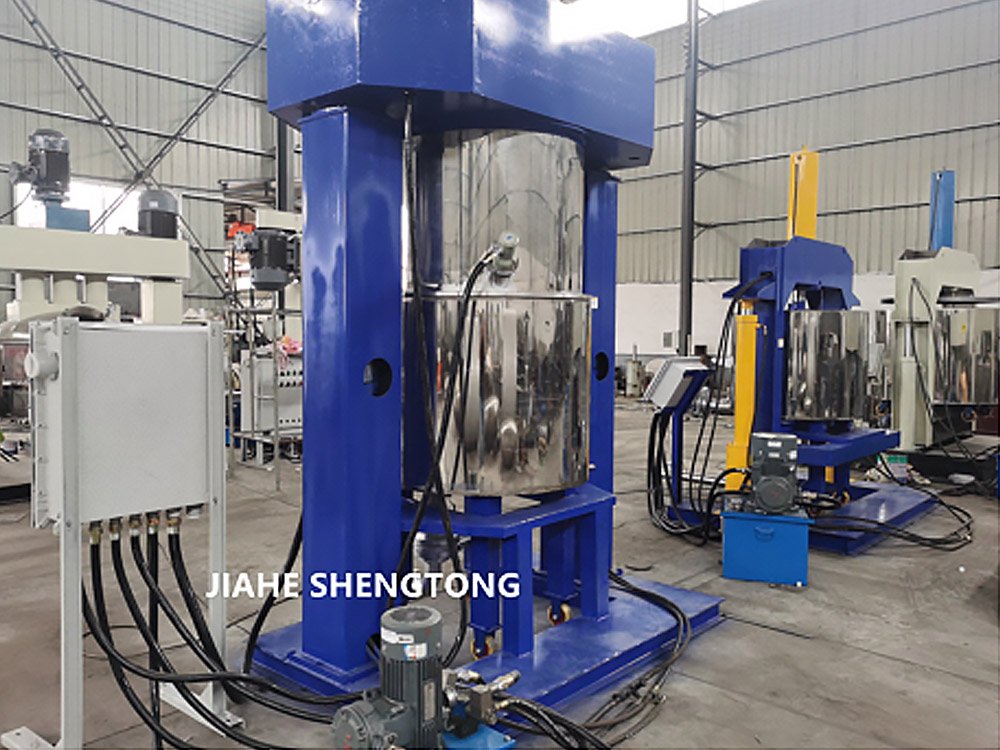

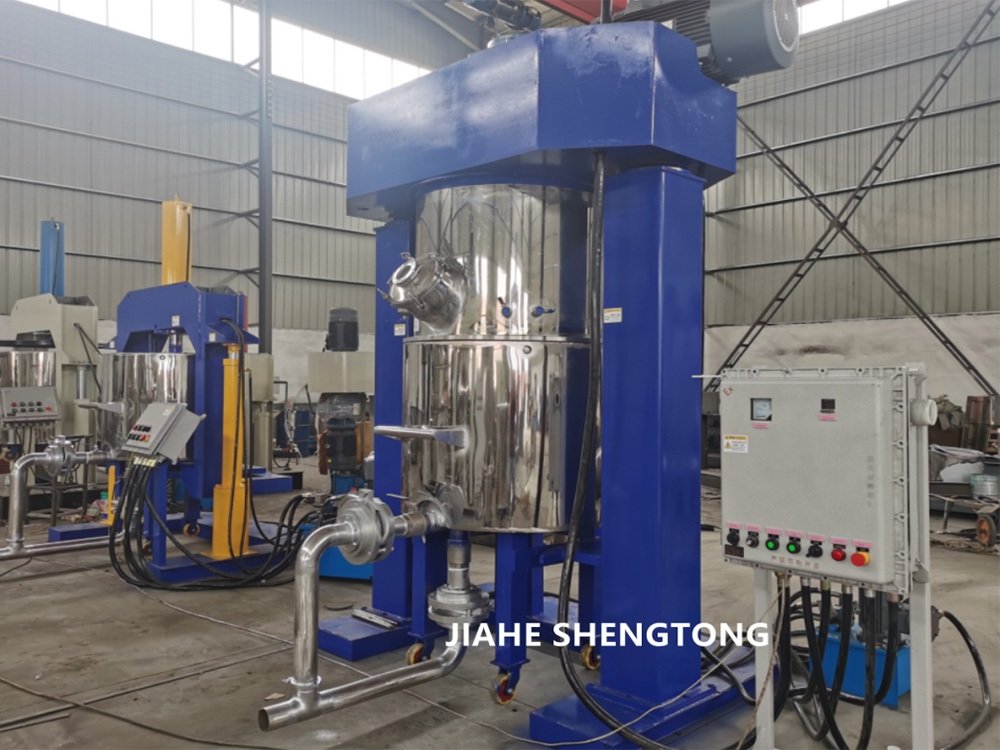

We are delighted to announce that the 500L planetary mixer and press machine for liquid silicone rubber (LSR&RTV) produced for
French customers has been successfully completed. After passing all the tests, it will be shipped to France.
The engineers of Jiahe Shengtong Machinery,after studying the special production process of liquid silicone rubber (LSR&RTV) for
the client, customized a 500L planetary mixer with a press machine for the client.
1. Total Capacity 600L,working capacity 180L-500L.
2. Slow sigma shape blade explosion proof motor 30KW-Siemens brand with gearbox,speed variable controlled by frequency
inverter-Siemens brand 0-37RPM.
3. High speed discs explosion proof motor 37KW-Siemens brand with frequency inverter-Siemens brand control speed 0-1450RPM.
4. PTFE scraper speed 0-37RPM,clean the material on wall of tank.
5. Planetary mixer with explosion proof vacuum system,remove the bubbles and air from the materials, reduce the volatile substances
and improve the product quality.
6. All raw material contact parts made by SUS304 with mirror polish.
7. Planetary mixer have two sets SUS304 movable tank,inner mirror polished.
8. Movable tank with jacket to cycle cold water in jacket, reduce the temperature of the materials.
9. Movable tanks have manual filter changer to filter liquid silicone rubber(LSR&RTV).
10. Planetary mixer have sight glass DN100*2,with explosion proof lamp to check condition of material.
11. Planetary Mixer and press machine with explosion proof hydraulic unite.
12. Explosion proof control cabinet for planetary mixer and press machine.
1. Choose suitable working capacity as batch production,the double planetary mixer loading factor 0.30-0.85.
2. Contact parts made by SUS304 or SUS316L with mirror polish avoiding material residue and easy to clean.
3. Choose suitable motor power as viscosity and density of raw material.
4. Planetary mixer’s slow blade can be sigma shape or paddle shape.
5. Vacuum system is standard configuration,it can remove the air bubbles from the materials and improve product quality to prevent
material oxidation.
6. Movable tank have jacket to cycle cold water reduce the temperature of the materials;Or cycle hot water to heat material.
7. The raw materials contain flammable and explosive components. A explosion proof system is installed to prevent the occurrence
of explosions and fires.
8. PLC system can be choosen,it can store multiple formulas, avoiding the inconsistency in quality caused by different batches.
1. Energy: battery paste,battery slurry etc
2. Electronics: solder paste,ceramic slurry,magnetic materials,silicone ink,electronic adhesive,PVC plastic cement,potting adhesive for
electronic and electrical parts,noble metal slurry etc
3. Chemicals: liquid silicone rubber,sealant,glue,adhesive,resin rubber,ink,wall putty,abrasive paste,waxwork,synthetic rubber,synthetic
resin etc
4. Pharmaceuticals: plaster,polymer gel,dental products etc
5. Cosmetics: moisturizer,lipstick, lotion, gel, mask, mascara, nail polish, toothpaste, soap etc
6. Food: pasty food,seasoning, jam,chocolate sauce etc
Any requirement for planetary mixer used for liquid silicone rubber(LSR&RTV) or other high viscosity material mixer, Jiahe Shengtong
Machinery engineer will provide professional suggestions and quotation to you.
